Research
After conducting research, several issues have been identified in the train compartment regarding the table located between the seats.
These include insufficient space to accommodate more than two persons, absence of a bottle holder for beverages,
non-adjustable height, and lack of foldability. Consequently, passengers encounter difficulties in utilizing the table effectively. Feedback from passengers emphasizes the need for improvements and changes to enhance the functionality of the table for a more satisfactory travel experience.
Content Analysis

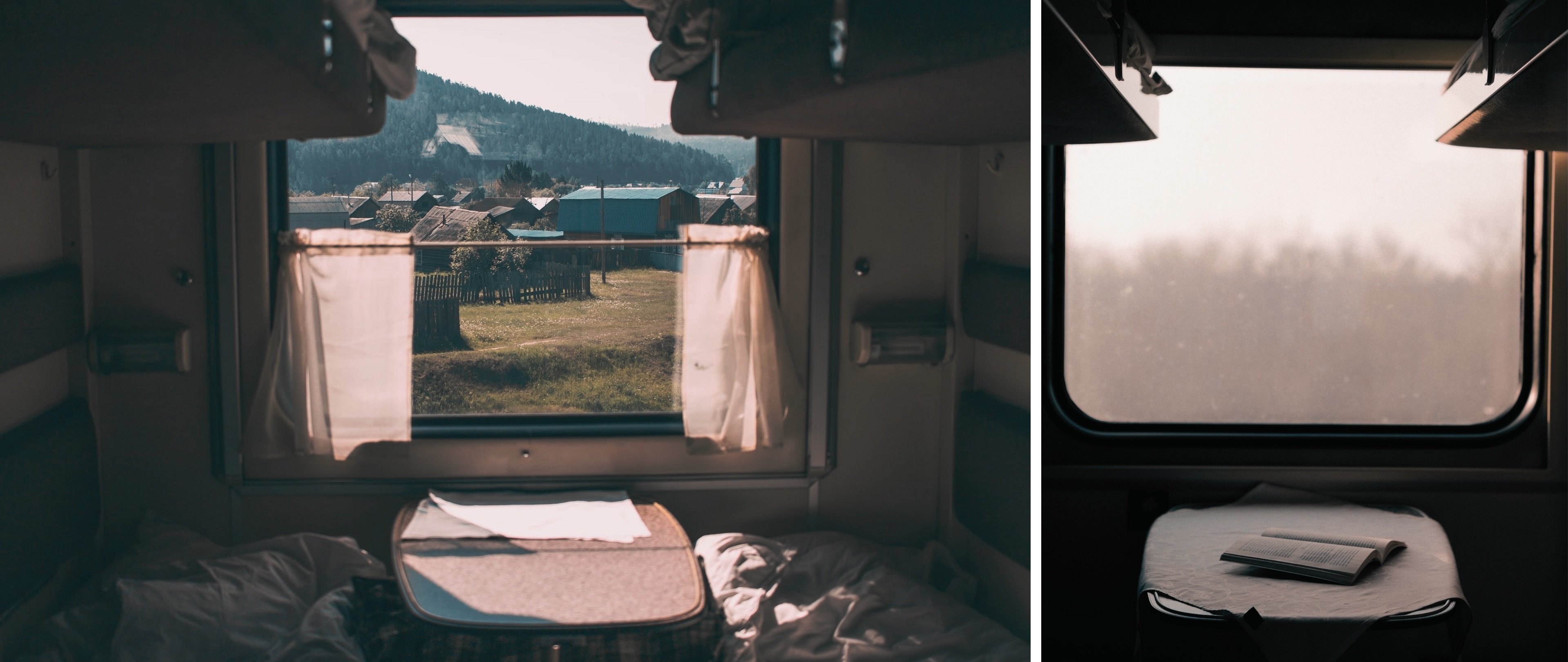

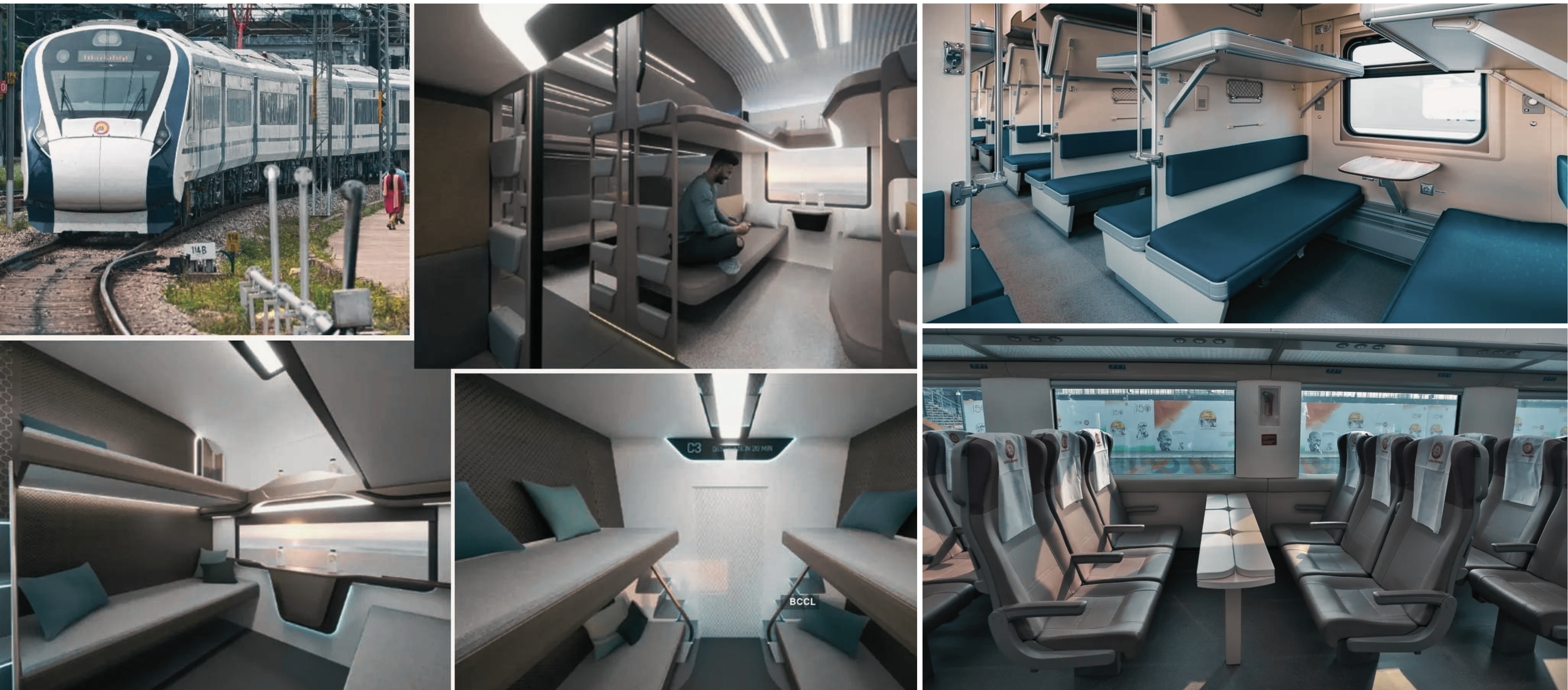

In the past, wooden tables and chairs adorned train compartments, but now tables have been repurposed for storage, lacking foldable features and bottle holders. The new Vande Bharat train introduces sleek, modern designs with advanced technology and comfortable seating, including bottle holders. Tables in modern compartments are integrated between seats, varying in size and material, providing space for activities like work or eating.
Solution
The side table is easily accessible for more than two passengers, providing a comfortable space for them to enjoy their meals and conveniently place items such as luggage, books, bottles, etc.

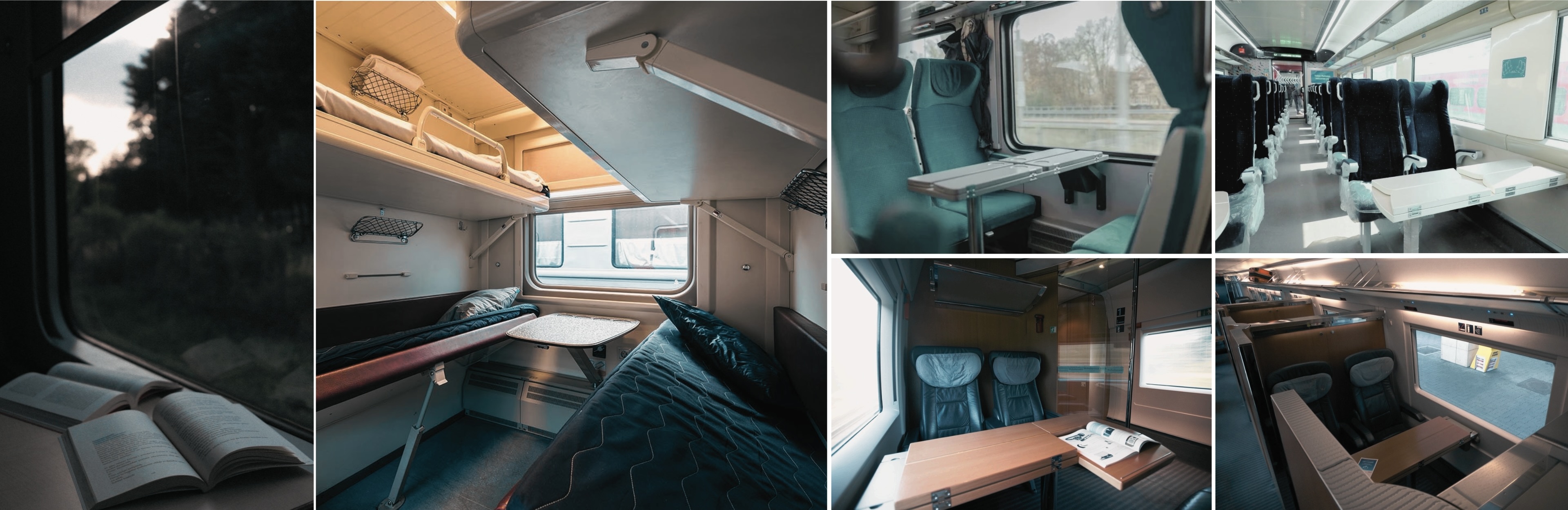

Existing Compartment Tables
Some of the reference images of existing train compartment table which helped me to renovate the table and come up with the solution.
Some of them are from Sleeper Birth, Sitting Compartment, And abroad based train compartment.

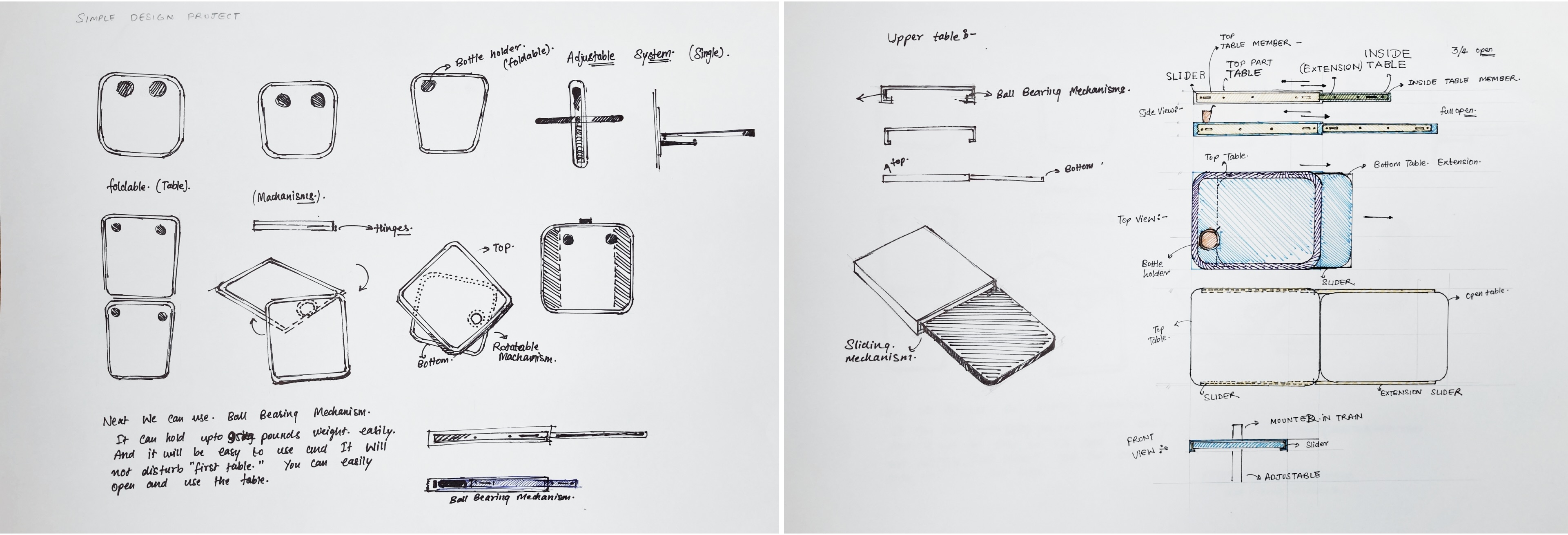

Sketches And Mechanism
These are some sketches to elaborate the ideas and mechanism of the compartment table.
In Final idea solution I have used Bearing Runner to open the table. The ball bearing runner can hold the 45kg~ weight easily.
Mechanism

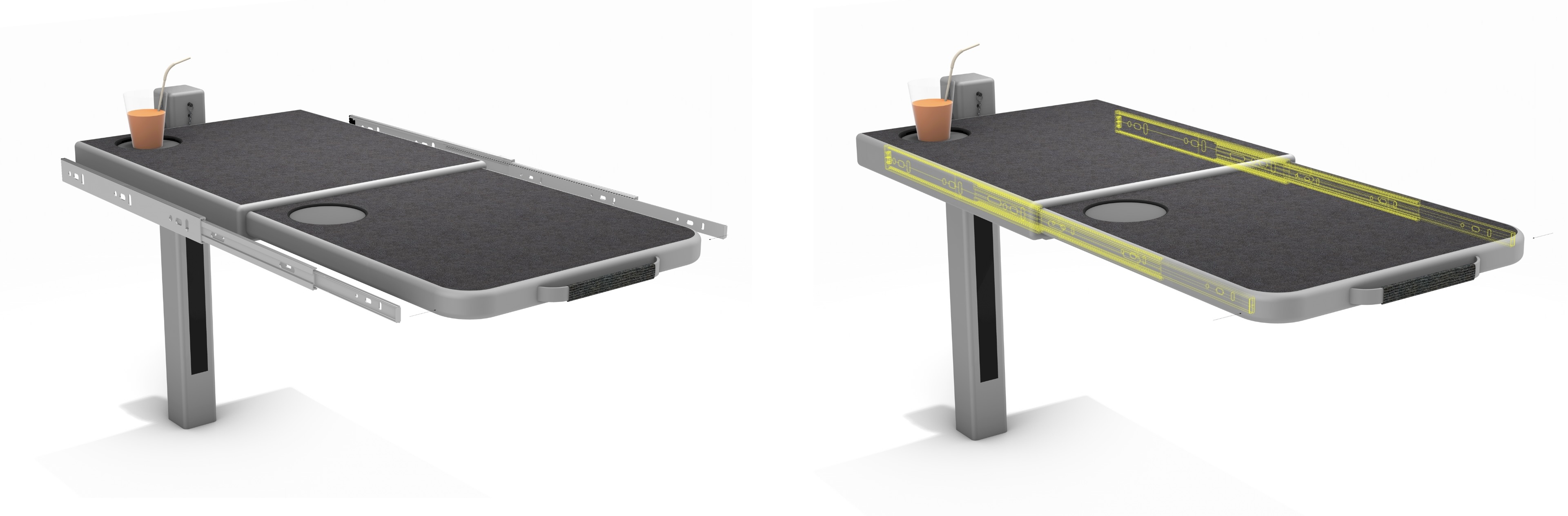

In the final concept, I incorporated a "ball bearing runner" to facilitate the table's opening.
This ball bearing runner can effortlessly support a weight of approximately 45 kg.
Technical Drawing
Here are some technical drawings illustrating the design of an ergonomically correct table and the mechanism for the compartment table.

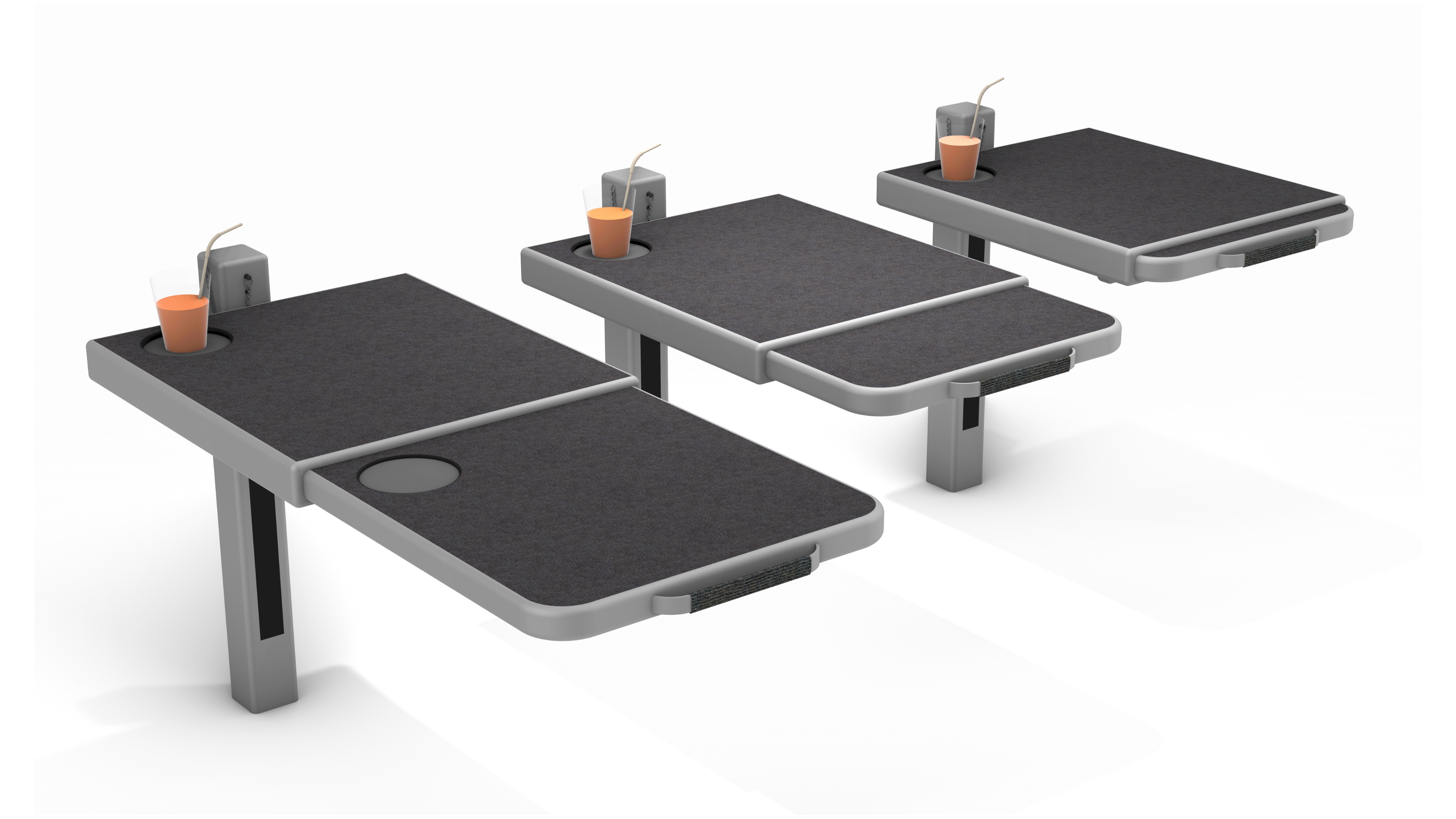

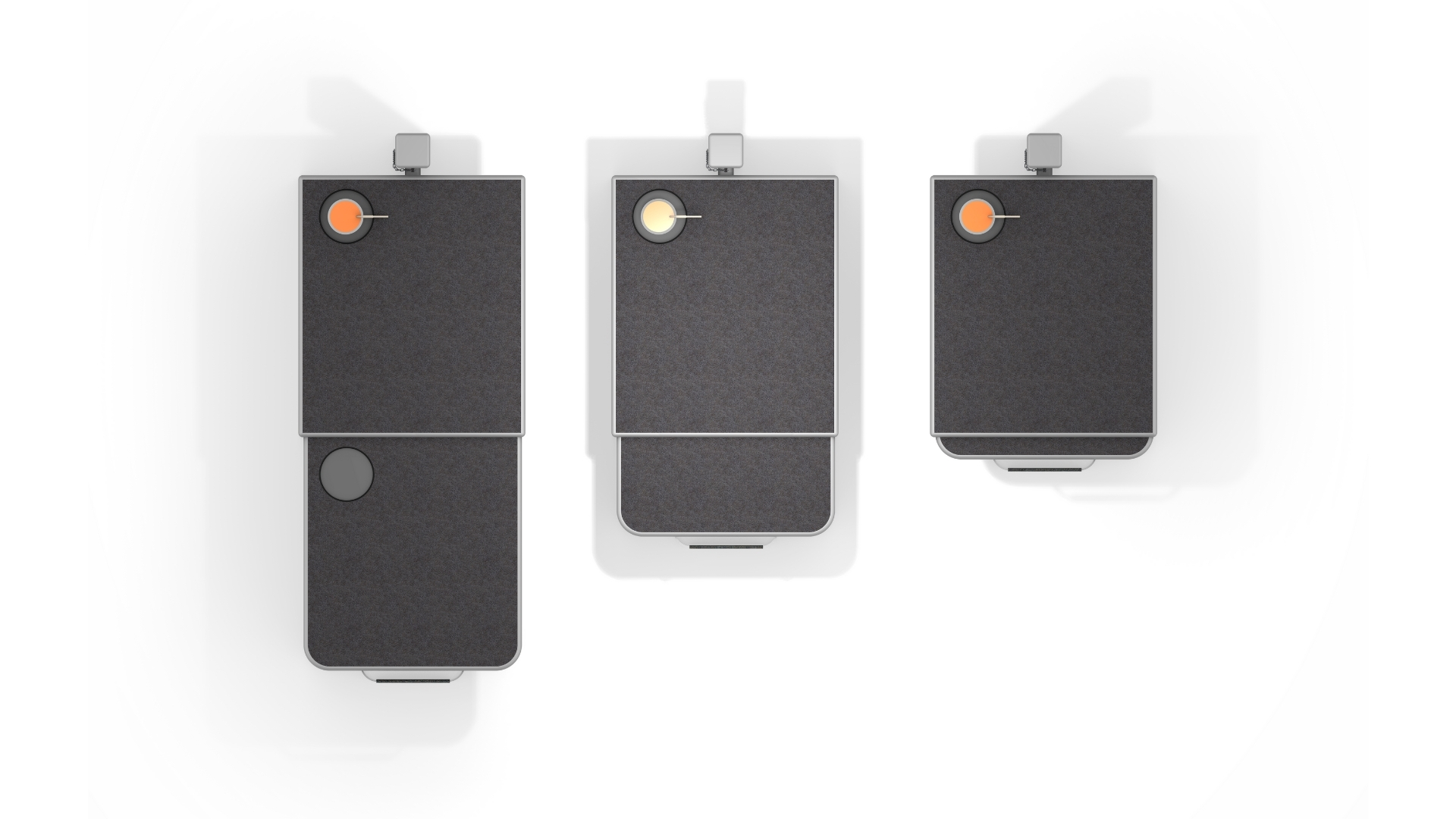

Fully Extended view of the table , Medium Extended view of the table , Slightly Extended view of the table

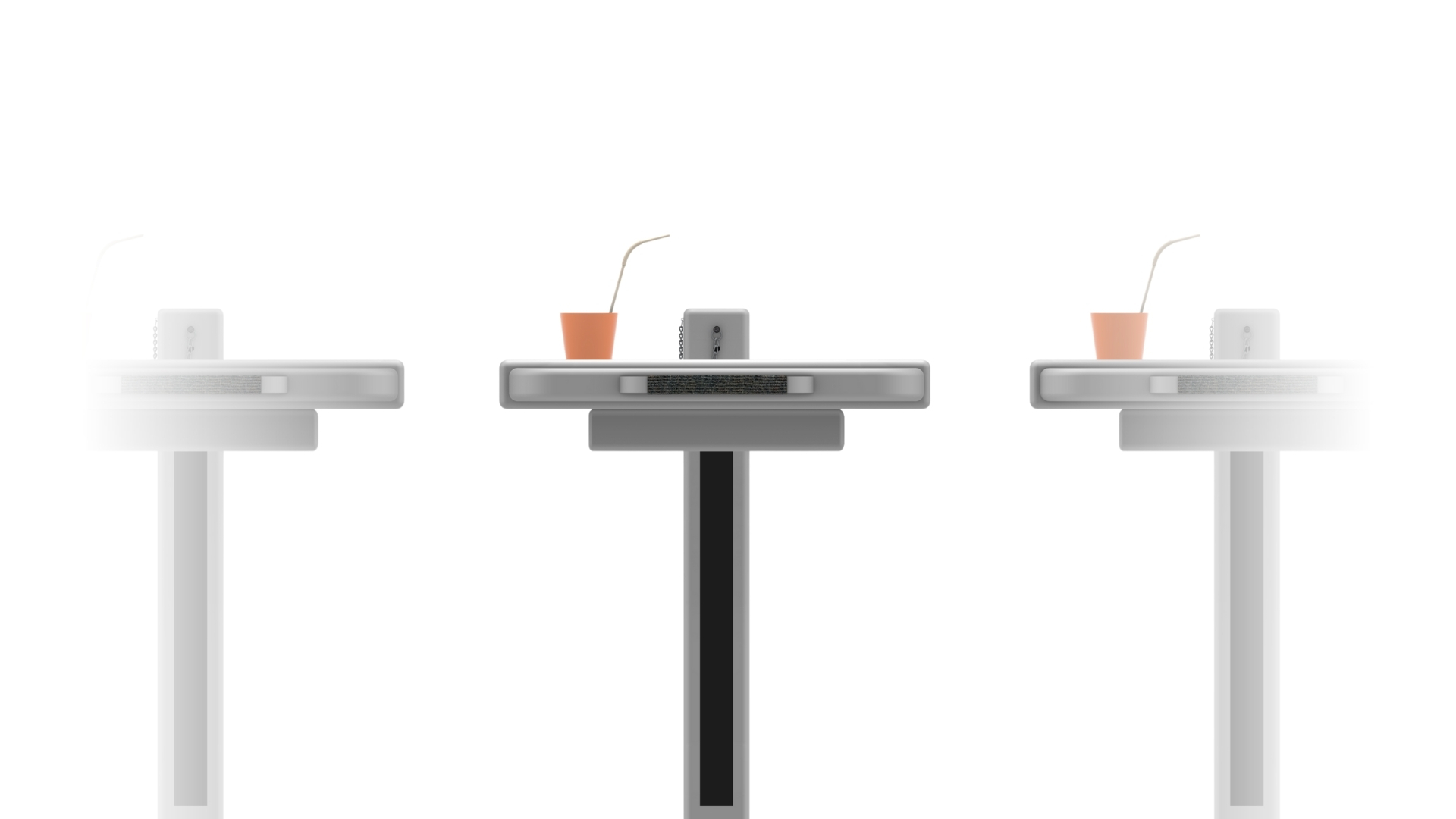

A visual representation of a table that can be extended or adjusted as needed, offering flexibility for various uses and convenience.

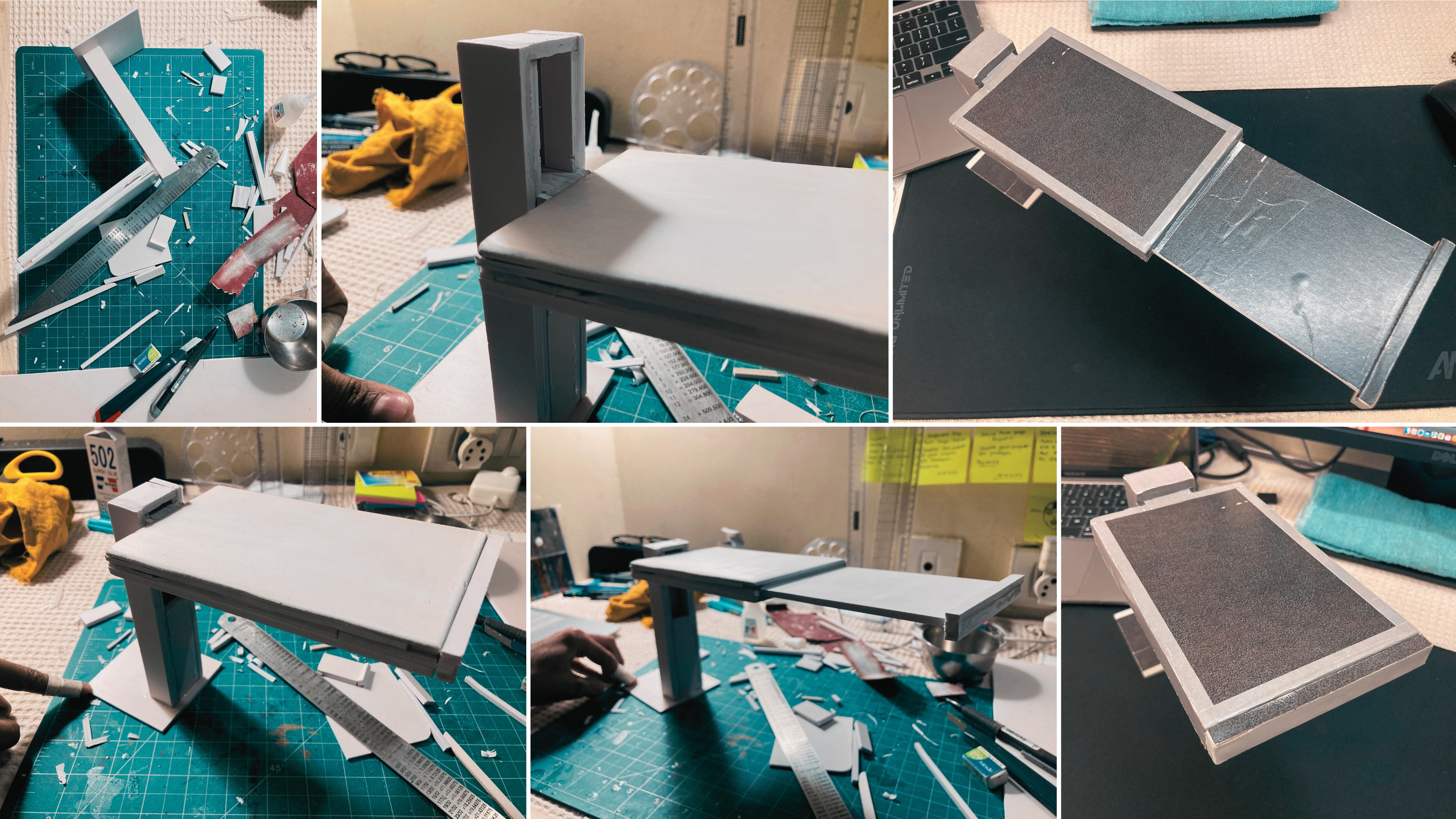

Prototype
